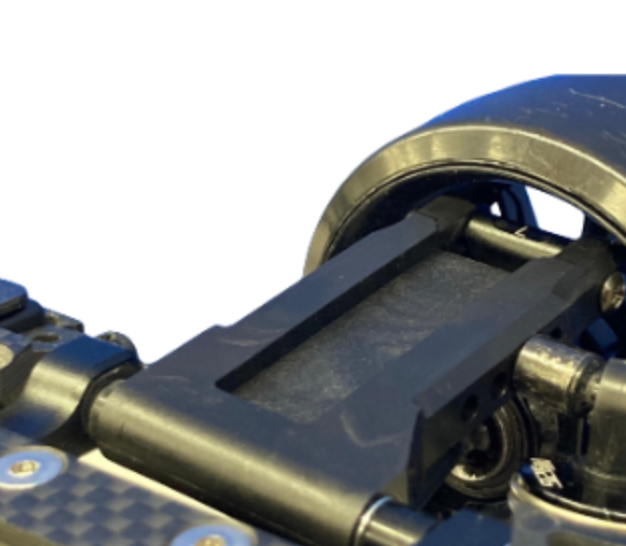

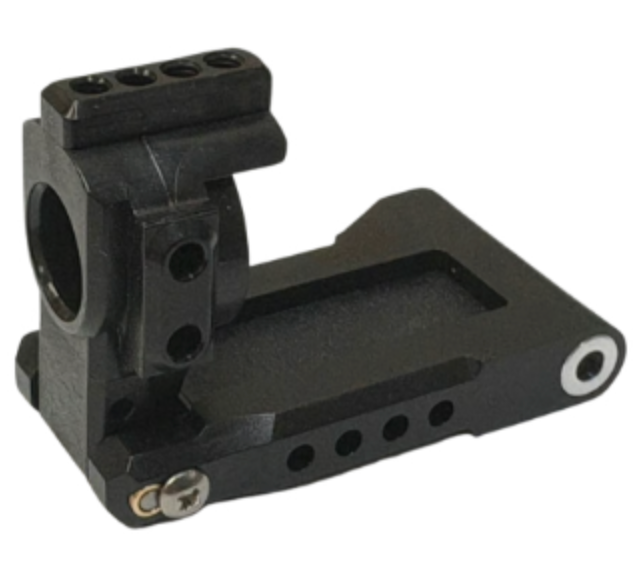

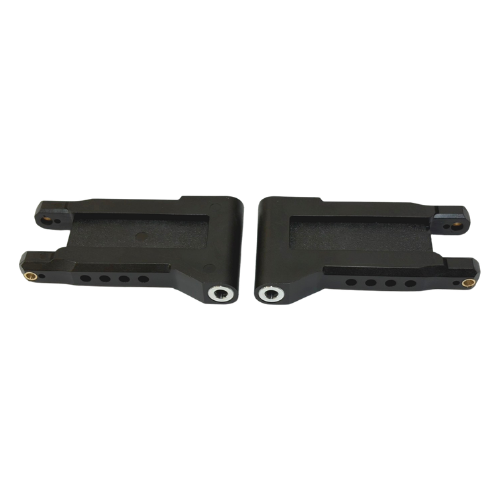

Lightweight High Traction Rear Suspension Arm V2 WS (With Sleeve)

Excluding tax: ¥2,780

High-grade specifications with metal sleeves added to the suspension pin sliding parts.
By press-fitting metal sleeves on both sides to create a hybrid structure, we pursued a crisp kicking feel and improved response.
It can be used with models where the inner suspension pin is Φ3mm and the outer suspension pin is Φ2mm, such as the RDX and RD/SD series. The left and right are the same shape, so it can be used reversibly.

<< Accessories >>
Lightweight High Traction Rear Suspension Arm WS x 2
Brass Sleeve x 4
M3 (inner diameter 3mm) x 2.5mm thick collar x 4
M2 tapping screws x 4 (for outer suspension pin fixing)

*Depending on the vehicle model,
a gap may occur between the suspension mount and the suspension arm.
Please adjust with a commercially available M3 spacer as necessary.

[Part Number / JAN Code]
・TP-703: 4589434365818 Lightweight High Traction Rear Suspension Arm V2 WS (W Sleeve) 42mm
・TP-704: 4589434365825 Lightweight High Traction Rear Suspension Arm V2 WS (W Sleeve) 45mm
