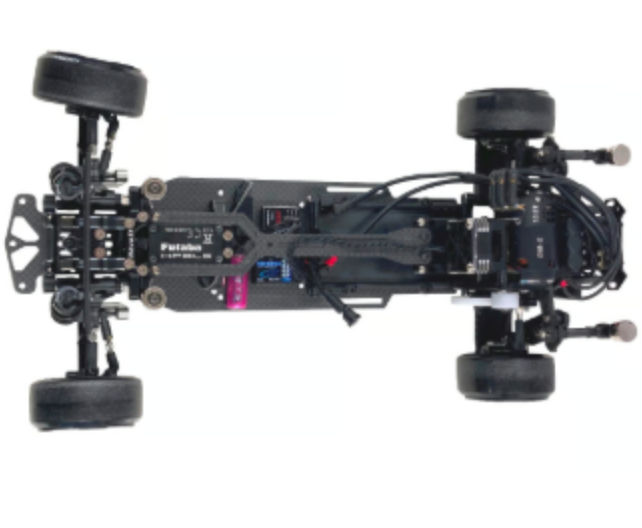

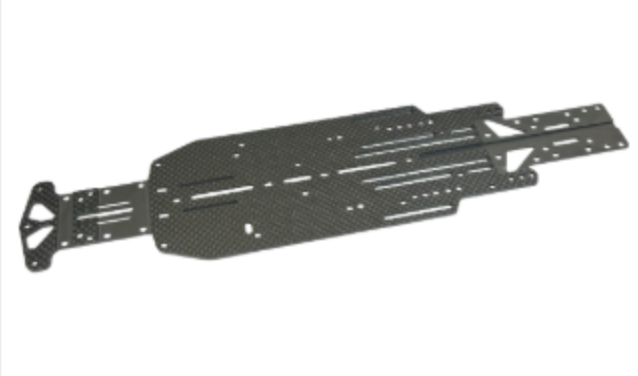

Fusion conversion chassis for YD-2, t=3.0

Price (excluding tax): ¥14,800

Introducing the Fusion Conversion Chassis for YD-2!!
The bulkheads (front, rear) and gearboxes from YD-2E/S/R/Z series (RD1.0, SD1.0, SD2.0) can be directly swapped over. RDX front bulkheads and front lower arm mounts can also be installed.
Milling on both the front and rear allows for the suspension mounts to be installed in a lower position. [1 set included]

・type RSⅡ
By using our belt conversion without an adapter plate,
we were able to lower the differential position by 2mm.
RDX front bulkheads and front lower arm mounts can also be installed.

・type RSⅢ

By adding cutouts to the Fusion Conversion Chassis type RS II,
we aimed to improve rear traction.
(Conversion chassis for RD1.0/SD1.0)
By using our belt conversion without an adapter plate,
we were able to lower the differential position by 2mm.

Compatible Models
⚫️Front Bulkhead
Yokomo RD1.0/2.0, SD1.0/2.0, Reve D RDX
⚫️Gearbox
Yokomo RD1.0/SD1.0, TOPLINE Belt Conversion

【Product No. / JAN Code】
・CMC-011MB: 4589434362527 YD-2 Fusion Conversion Chassis t=3.0 type RS
・CMC-012MB: 4589434363265 YD-2 Fusion Conversion Chassis t=3.0 type RSⅡ
・CMC-013MB: 4589434363937 YD-2 Fusion Conversion Chassis t=3.0 type RSⅢ
